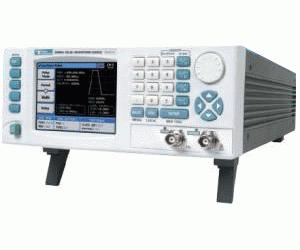

Tabor Electronics PM8571 Overview

(Preliminary) Model PM8571 is a very high performance, single channel pulse / pattern generator that stretches normal pulse generators` spec to the limit, becoming by far the most advanced Pulse / Waveform Source available in the market. In addition to its high performance pulse features, the new PM8571 generates a complete array of standard, arbitrary and sequenced waveforms, which are necessities in today`s laboratories.

• “Drop-in” Emulators for: Agilent 81101, Fluke 80/1, HP8116, HP8112, HP8160, HP8165, LeCroy LW410, Tabor 8500, Tabor 8550/1, Tek FG5010, and PG5110
• 50MHz Single Channel Pulse / Pattern generator
• 100MHz Function Generator for standard waveforms
• 300MS/s, 16Bit Arbitrary Waveform / Sequence Generator
• 10ps pulse resolution with 4ns transition time (3ns typical)
• 32Vpp into open circuit with programmable impedance
• 16-bit Digital Pattern Generator with programmable level
• External pulse width control
• Internal AM, FM, FSK, ASK, PSK, PWM and sweep
• Ethernet, USB and GPIB interfaces
• High resolution 3.8” User Friendly color LCD display
• Multiple run modes including continuous, trigger, burst, gated, re-trigger with trigger and system delay control
