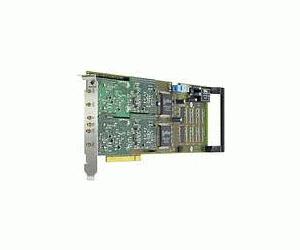

MC.4021 - Spectrum Transient Recorders Digitizers


Get Quote

  • Model: MC.4021
  • Manufactured by: Spectrum
  • Max Sample Rate: 20MSa/sec
  • Channels: 2
  • Resolution: 14 bits
  • Extra Specifications: Transient Recorder
Do you have a MC.4021 you want to sell?
We buy used equipment!
Learn More

Spectrum MC.4021 Overview

The MC.40xx (incl. the MC.4021) is suitable for applications that need high sampling rates as well as a maximum signal dynamic. These boards offer a resolution 4 times higher than 12 bit boards. On the MC.40xx every channel has its own amplifier and A/D converter. Each input channel could be adapted to a wide variety of signal sources.

This is done by software selecting a matching input range, an input impedance and an individual input offset. The user will find easily a matching solution from the six offered models. These versions are working with sampling rates of 20 MS/s or 50 MS/s and have one, two or four channels and could also be updated to a multi-channel system using the internal synchronization bus.

Data is written in the internal 8 MSamples up to 256 MSample large memory. This memory could also be used as a FIFO buffer. In FIFO mode data could be transferred on-line directly into the PC RAM or to hard disk.

  • 14 bit transient recorder
  • 2 synchronous channels with separate A/D
  • Maximum sampling rate 20 MS/s on 2 channels
  • High dynamic range
  • Up to 256 MSample memory
  • 6 input ranges between ±200 mV and ±10 V
  • FIFO mode up to 50 MS/s sum samplerate
  • Input offset up to ±200%
  • Automatic offset calibration
  • Synchronisation to multi-board system possible
  • 32 Bit CompactPCI 6U interface
  • Compatible with 3,3V and 5V PCI I/O-Voltage
