Vector VNA cables - Velocity


Get Quote

  • Model: Vector VNA cables
  • Manufactured by: Velocity
Do you have a Vector VNA cables you want to sell?
We buy used equipment!
Learn More

Velocity Vector VNA cables Overview

Velocity Vector VNA Cables

Repairable!
Sustainable, High Performance VNA Test Port Extension Cables
Velocity Microwave has a patent-pending, revolutionary design of VNA port extension cables.  The new VM Vector series cables are repairable!  This simple concept will save you thousands of dollars over the life of the cable.  No longer will you need to replace cables that are damaged or worn out.  Each component in a Vector cable can be repaired, including field-repairable connectors.

To provide even more value to our customers, Velocity Microwave will provide an extended warranty on connector repairs that you perform in the field!  After performing the repair process, simply send us the new passing calibration data and we will back your work for six months.

The extremely flexible Vector cables are available in standard 26" and 39" lengths.  Any configuration of connectors, Type N through 1.85mm, male or female, NMD-style or standard connectors can be specified.

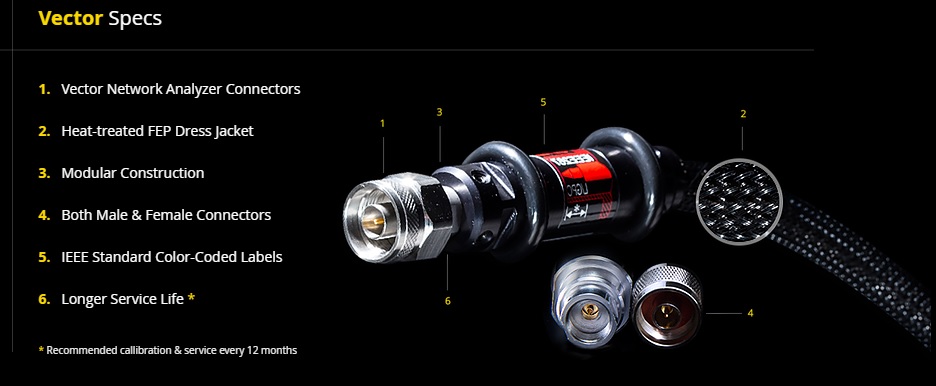

Vector Advantages & Benefits
  • Resistance to pivoting on lab bench surfaces
  • Enhanced resistance to sudden axial loading
  • Enhanced resistance to compression loading
  • Extended time between analyzer calibration
  • Built-in sustainability & repairability for extended service life
  • Heat-treated FEP braided jacket
  • Industry leading 2-year warranty
  • Available individually or in 26" phase-matched sets
  • Available in 26" and 39" (custom sizes available up to 60")
  • USB Drive with Calibration Data
  • 2 Flat Wrenches Included
  • Patent pending ruggedized microwave test cable for dedicated VNA application
  • Fully modular construction from connector to internal transmission assembly
  • Enhanced flexibility and lighter weight
  • Propagation velocity of 84% speed of light
  • IEEE Standard color coding for connector identification
  • Minimum phase change with flexure and temperature
  • 800 lbs per MIL-T-81490 compression resistance
  • Mechanically preloaded transmission line and jacket
  • 1.85, 2.4, 2.92, 3.5, and N male/female stainless steel conectors
  • Dual ring hand grips with ultra scratch resistant surface
  • Type III anodized strain relief with a 9-Mohs hardness for extreme scratch resistance
  • High velocity laminated core for phase v. temp stability

TPX-NM-NM-26 26"  Cable, Type-N (M)  to Type N (M) Connectors
TPX-NM-NF-26 26" Cable, Type-N (M) to Type-N (F) Connectors
TPX-NF-NF-26 26" Cable, Type-N (F) to Type-N (F) Connectors
TPX-NM-NM-39 39" Cable, Type-N (M) to Type-N (M) Connectors
TPX-NM-NF-39 39" Cable, Type-N  (M) to Type-N (F) Connectors
TPX-NF-NF-39 39" Cable, Type-N (F) to Type-N (F) Connectors
TPX-35NMD-35M-26 26" cable, 3.5mm NMD (F) to 3.5 mm (M) Connectors
TPX-35NMD-35F-26 26" cable, 3.5mm NMD (F) to 3.5 mm (F) Connectors
TPX-35NMD-35M-39 39" cable, 3.5mm NMD (F) to 3.5 mm (M) Connectors
TPX-35NMD-35F-39 39" cable, 3.5mm NMD (F) to 3.5 mm (F) Connectors
TPX-29NMD-29M-26 26" cable, 2.92mm NMD (F) to 2.92 mm (M) Connectors
TPX-29NMD-29F-26 26" cable, 2.92mm NMD (F) to 2.92 mm (F) ConnectorsRichText.
TPX-29NMD-29M-39 39" cable, 2.92mm NMD (F) to 2.92 mm (M) Connectors
TPX-29NMD-29F-39 39" cable, 2.92mm NMD (F) to 2.92 mm (F) Connectors
TPX-24NMD-24M-26 26" cable, 2.4mm NMD (F) to 2.4 mm (M) Connectors
TPX-24NMD-24F-26 26" cable, 2.4mm NMD (F) to 2.4 mm (F) Connectors
TPX-24NMD-24M-39 39" cable, 2.4mm NMD (F) to 2.4 mm (M) Connectors
TPX-24NMD-24F-39 39" cable, 2.4mm NMD (F) to 2.4 mm (F) Connectors
TPX-18NMD-18M-26 26" cable, 1.85mm NMD (F) to 1.85mm (M) Connectors
TPX-18NMD-18F-26 26" cable, 1.85mm NMD (F) to 1.85mm (F) Connectors
TPX-18NMD-18F-39 39" cable, 1.85mm NMD (F) to 1.85mm (F) Connectors
TPX-18NMD-18M-39 39" cable, 1.85mm NMD (F) to 1.85mm (M) Connectors
TPX-29NMD-35M-26 Hybrid Vector 26" Cable  ?  2.92 NMD (F) - 3.5mm (M) Connectors
TPX-29NMD-35F-26 Hybrid Vector 26" Cable  ?  2.92 NMD (F) - 3.5mm (F) Connectors
TPX-29NMD-35M-39 Hybrid Vector 39" Cable  ?  2.92 NMD (F) - 3.5mm (M) Connectors
TPX-29NMD-35F-39 Hybrid Vector 39" Cable  ?  2.92 NMD (F) - 3.5mm (F) Connectors
TPX-24NMD-35M-26 Hybrid Vector 26" Cable  ?  2.4 NMD (F) - 3.5mm (M) Connectors
TPX-24NMD-35F-26 Hybrid Vector 26" Cable  ?  2.4 NMD (F) - 3.5mm (F) Connectors
TPX-24NMD-35M-39 Hybrid Vector 39" Cable  ?  2.4 NMD (F) - 3.5mm (M) Connectors
TPX-24NMD-35F-39 Hybrid Vector 39" Cable  ?  2.4 NMD (F) - 3.5mm (F) Connectors
TPX-24NMD-29M-26 Hybrid Vector 26" Cable  ?  2.4 NMD (F) - 2.92mm (M) Connectors
TPX-24NMD-29F-26 Hybrid Vector 26" Cable  ?  2.4 NMD (F) - 2.92mm (F) Connectors
TPX-24NMD-29M-39 Hybrid Vector 39" Cable  ?  2.4 NMD (F) - 2.92mm (M) Connectors
TPX-24NMD-29F-39 Hybrid Vector 39" Cable  ?  2.4 NMD (F) - 2.92mm (F) Connectors
TPX-35M-NM-26 Hybrid Vector 26" Cable, 3.5mm (M) to Type-N (M) Connectors
TPX-35M-NF-26 Hybrid Vector 26" Cable, 3.5mm (M) to Type-N (F)  Connectors
TPX-35M-NM-39 Hybrid Vector 39" Cable, 3.5mm (M) to Type-N (M) Connectors
TPX-35M-NF-39 Hybrid Vector 39" Cable, 3.5mm (M) to Type-N (F) Connectors
TPXKIT-35-FF-26 Two Vector 26" Cables  ? 3.5 NMD (F) - 3.5mm (F) Connectors
TPXKIT-35-FM-26 Two Vector 26" Cables - 3.5NMD (f) to 3.5mm (M&F) Connectors
TPXKIT-35-MM-26 Two Vector 26" Cables - 3.5 NMD (F) - 3.5mm (M) Connectors
TPXKIT-35-FF-39 Two Vector 39" Cables - 3.5 NMD (F) - 3.5mm (F) Connectors
TPXKIT-35-FM-39 Two Vector 39" Cables - 3.5NMD (f) to 3.5mm (M&F) Connectors
TPXKIT-35-MM-39 Two Vector 39" Cables - 3.5 NMD (F) - 3.5mm (M) Connectors
TPXKIT-29-FF-26 Two Vector 26" Cables  ? 2.92 NMD (F) - 2.92mm (F) Connectors
TPXKIT-29-FM-26 Two Vector 26" Cables  ? 2.92 NMD (F) - 2.92mm (M&F) Connectors
TPXKIT-29-MM-26 Two Vector 26" Cables  ? 2.92 NMD (F) - 2.92mm (M) Connectors
TPXKIT-29-FF-39 Two Vector 39" Cables  ? 2.92 NMD (F) - 2.92mm (F) Connectors
TPXKIT-29-FM-39 Two Vector 39" Cables  ? 2.92 NMD (F) - 2.92mm (M&F) Connectors
TPXKIT-29-MM-39 Two Vector 39" Cables  ? 2.92 NMD (F) - 2.92mm (M) Connectors
TPXKIT-24-FF-26 Two Vector 26" Cables  ? 2.4 NMD (F) - 2.4mm (F) Connectors
TPXKIT-24-FM-26 Two Vector 26" Cables  ? 2.4 NMD (F) - 2.4mm (M&F) Connectors
TPXKIT-24-MM-26 Two Vector 26" Cables  ? 2.92 NMD (F) - 2.92mm (M) Connectors
TPXKIT-24-FF-39 Two Vector 39" Cables  ? 2.4 NMD (F) - 2.4mm (F) Connectors
TPXKIT-24-FM-39 Two Vector 26" Cables  ? 2.4 NMD (F) - 2.4mm (M&F) Connectors
TPXKIT-24-MM-39 Two Vector 26" Cables  ? 2.4 NMD (F) - 2.4mm (M) Connectors
TPXKIT-18-FF-26 Two Vector 26" Cables  ? 1.85 NMD (F) - 1.85mm (F) Connectors
TPXKIT-18-FM-26 Two Vector 26" Cables  ? 1.85 NMD (F) - 1.85mm (M&F) Connectors
TPXKIT-18-MM-26 Two Vector 26" Cables  ? 1.85 NMD (F) - 1.85mm (M) Connectors
TPXKIT-18-FF-39 Two Vector 39" Cables  ? 1.85 NMD (F) - 1.85mm (F) Connectors
TPXKIT-18-FM-39 Two Vector 39" Cables  ? 1.85 NMD (F) - 1.85mm (M&F) Connectors
TPXKIT-18-MM-39 Two Vector 39" Cables  ? 1.85 NMD (F) - 1.85mm (M) Connectors
