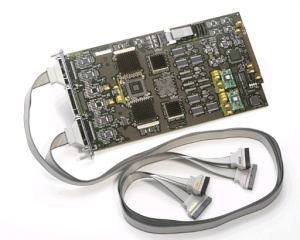

16911A - Keysight / Agilent Logic Analyzers


Get Quote

  • Model: 16911A
  • Manufactured by: Keysight / Agilent
  • Max. Channels Number: 68
  • Max. State Speed: 450.0MHz
  • Max. Timing Speed: 4GHz
  • Extra Specifications: 68-Channel 4 GHz Timing/250 MHz State Logic Analysis Module
  • 68 channels
  • 4 GHz (250 ps) timing zoom with 64K memory depth
  • 500 MHz / 1 GHz (full / half-channel) conventional timing with deep memory
  • 500 MHz transitional timing
  • Selectable memory depths of 256K, 1M, 4M, 16M, or 32M.
  • Supports clock rates up to 250 MHz or 450 MHz
  • Supports data rates up to 250 Mb/s or 500 Mb/s
  • Comprehensive single-ended threshold support (-5V to 5V in 10 mV increments)
  • Eyefinder automatically adjusts setup and hold for accurate measurements on high-speed buses
  • Memory Depth and State Speed Upgrade Options:
      • Option 256: Acquisition memory depth of 256K. Included in base configuration of module at purchase
      • Option 001: Increase acquisition memory depth to 1M at the time of module purchase
      • Option 004: Increase acquisition memory depth to 4M at the time of module purchase
      • Option 016: Increase acquisition memory depth to 16M at the time of module purchase
      • Optioin 032: Increase acquisition memory depth to 32M at the time of module purchase
      • Option 250: Maximum state speed of 250 MHz.  Included in base configuration of module at purchase
      • Option 500: Increase maximum state speed to 450 MHz at the time of module purchase
