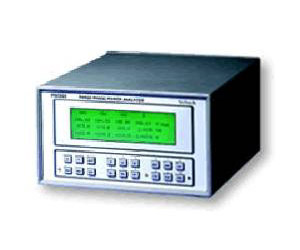

PM300 - Voltech Power Recorders


Contact for Quote

  • Model: PM300
  • Manufactured by: Voltech
  • Instrument Type: Portable
  • Input Channels: 3
  • Operation Modes: Meter, Recorder
  • Measurements: Watts, V, A, VA, VAR, Power Factor, Cosf, Vpk, Apk, Crest Factor (CF), requency, Harmonics, A (incl. phase) and W to the 50th Total Harmonic Distortion
  • Extra Specifications: Power Analyzer,DC to 250 kHz, Three Phase

A versatile bench-top power analyzer, ideal for the measurement of watts, volts, amps, power factor, harmonics, distortion and Wh in the design, development and production test of three-phase electrical and electronic goods.
By connecting directly to the analyzer''s 20A-rated internal shunts, the errors of gain and phase found in external current transformers and transducers are eliminated.

  • Simple one-button press to obtain basic measurements
  • Proprietary measurement algorithms provide accurate, stable measurements every time
  • Fully isolated measurement channel for direct connection for line voltage up to 1000Vpk and current up to 20A rms (200Apk)
  • Simple connection and scaling to a wide variety of current transducers
  • Easy-to-use menu structure for changing and storing settings
  • Display 3 measurements, waveforms or harmonic spectrum
  • Supplied with comprehensive user manual, line cord, measuring leads and certificates of calibration and conformance
